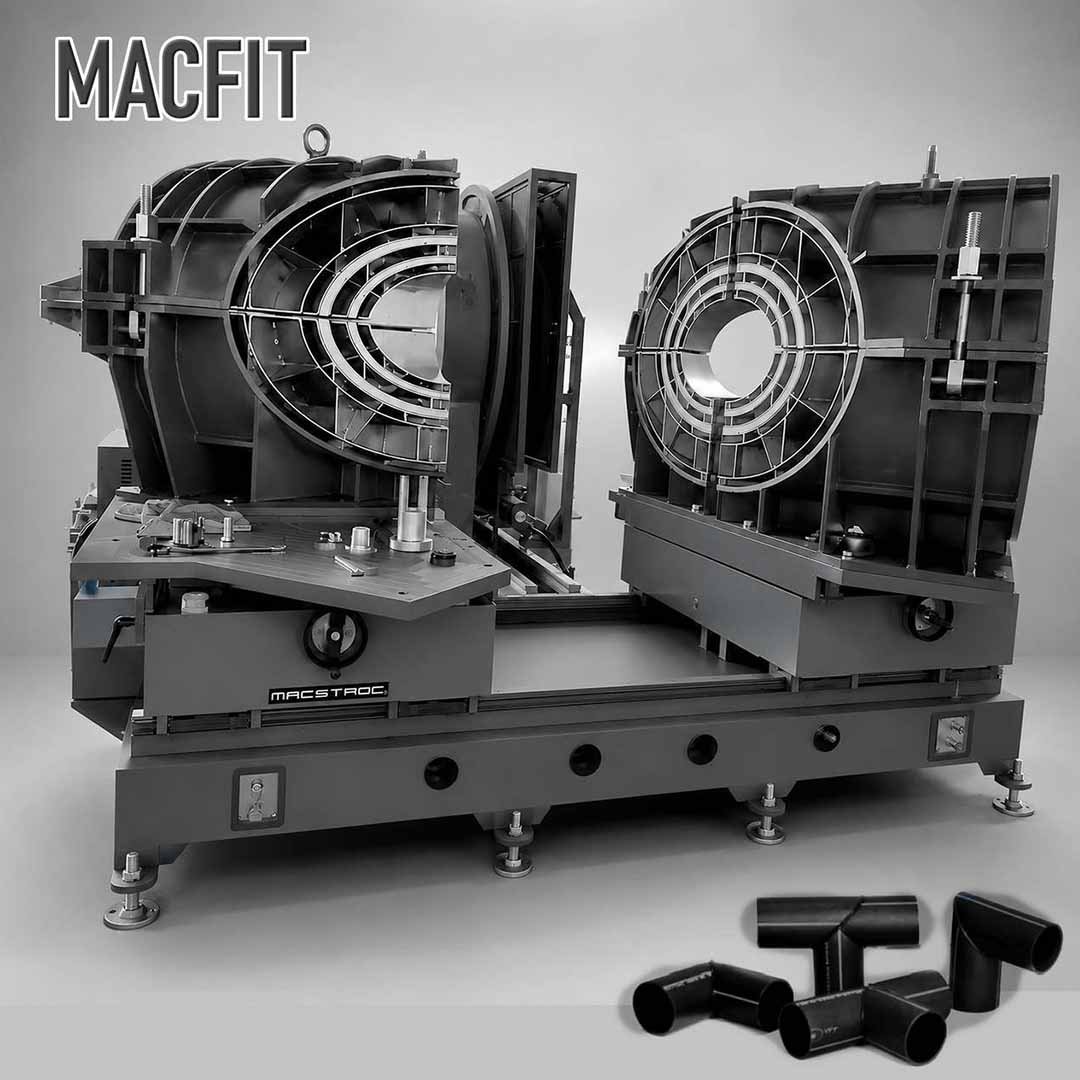

    HDPE PIPE FABRICATION EQUIPMENT, MACFIT450MM

    The Macstroc MACFIT450 Workshop Fitting Fabrication Machine is a high-capacity hydraulic fabrication system designed for producing HDPE, PE, PP, and PVDF fabricated fittings ranging from 200mm to 450mm. Engineered for professional fabrication workshops, the machine supports the production of segmented elbows, equal tees, reducing tees, crosses, and Y-branches with exceptional welding accuracy and operational efficiency. Featuring a robust hydraulic frame, precision planing tool, PTFE-coated heating plate, and interchangeable fabrication clamps, the MACFIT450 delivers reliable performance for water supply, gas distribution, industrial processing, mining, and infrastructure projects across the GCC, Middle East, Africa, and international markets.

    Whatsap US
    Download MacStroc catalog

    The Macstroc MACFIT450 is a professional workshop fitting fabrication machine developed for the efficient production of medium and large-diameter thermoplastic fabricated fittings. Designed to process PE (HDPE), PP, and PVDF materials, the machine enables manufacturers and pipeline contractors to fabricate high-quality fittings with outstanding dimensional accuracy and welding consistency.

    As modern piping systems continue to expand across water transmission, gas distribution, industrial processing, and infrastructure sectors, the demand for custom-fabricated HDPE fittings has increased significantly. The MACFIT450 provides a complete fabrication solution capable of producing segmented elbows, equal tees, reducing tees, crosses, Y-branches, and various custom fittings required for complex pipeline networks.

    The machine incorporates a heavy-duty hydraulic welding frame, precision-controlled heating plate, high-performance planing tool, and interchangeable fabrication inserts. This modular design simplifies workshop operations while ensuring superior welding quality and production efficiency.

    Engineered for continuous industrial use, the MACFIT450 offers excellent durability, precise temperature control, stable hydraulic pressure management, and long-term operational reliability.

    Designed for Professional HDPE Fitting Production

    The MACFIT450 enables efficient fabrication of a wide range of thermoplastic fittings including:

    • Segmented Elbows
    • Equal Tees
    • Reducing Tees
    • Crosses
    • Y-Branches
    • Custom Fabricated Fittings
    • Special Industrial Pipe Components

    The machine's hydraulic welding system provides accurate pressure control throughout the welding cycle, while the PTFE-coated heating plate ensures uniform heat distribution across all welding surfaces. This combination produces strong, leak-free fusion joints that meet demanding industry requirements.

    Its interchangeable fabrication clamps allow operators to switch quickly between fitting configurations, increasing productivity and reducing setup time.

    Specification Details
    Model MACFIT450
    Pipe Size Range 200 – 450 mm
    Available Sizes 200, 225, 250, 280, 315, 355, 400, 450 mm
    Tee Fabrication Yes
    Cross Fabrication Yes
    Elbow Fabrication 0° – 90°
    Y-Branch Fabrication 45° / 60°
    Applicable Materials PE, PP, PVDF
    Heating Plate Maximum Temperature 270°C
    Temperature Deviation ≤ ±7°C
    Working Voltage 380V, 50Hz
    Pressure Adjustment Range 0 – 12 MPa
    Heating Plate Power 12.2 kW
    Planing Tool Power 2.2 kW
    Hydraulic Unit Power 3.0 kW
    Total Installed Power 17.4 kW
    Machine Weight 2850 kg
    • Suitable for PE, HDPE, PP, and PVDF materials
    • Fabrication capacity from 200mm to 450mm
    • Hydraulic welding system
    • PTFE-coated heating plate
    • Precision temperature control
    • High-performance planing tool
    • Tee fabrication capability
    • Cross fabrication capability
    • Elbow fabrication from 0° to 90°
    • Y-Branch fabrication at 45° and 60°
    • Modular fabrication platform
    • Heavy-duty industrial construction
    • Reliable workshop performance
    • Long service life
    • Designed for GCC, Middle East, Africa, and global markets

    Standard Accessories

    The MACFIT315 is supplied with:

    • Tee & Cross Fabrication Insert
    • Tee & Cross Fabrication Clamp
    • Elbow Fabrication Clamp
    • Elbow Fabrication Insert

    These accessories allow immediate fabrication of the most commonly used HDPE fittings.

    Optional Accessories

    Optional tooling is available to expand fabrication capabilities:

    • MACFIT Wye Clamp
    • MACFIT Wye Insert
    • Flange Stub-End Welding Clamp
    • Short Spigot Fitting Clamp

    The MACFIT450 is widely used in:

    • HDPE Water Transmission Projects
    • Municipal Water Supply Networks
    • Gas Distribution Systems
    • Industrial Processing Plants
    • Mining Operations
    • Irrigation Infrastructure
    • Wastewater Treatment Facilities
    • Utility Infrastructure Projects
    • Fabrication Workshops
    • Pipeline Manufacturing Facilities

    Its versatility makes it a preferred choice for contractors, manufacturers, utility companies, and engineering firms across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, GCC countries, Middle East, Africa, and international markets.

    Why Choose Macstroc MACFIT450?

    The Macstroc MACFIT450 Workshop Fitting Fabrication Machine delivers the ideal combination of fabrication flexibility, welding precision, productivity, and durability. Its advanced hydraulic technology, modular fabrication design, and heavy-duty construction allow operators to produce high-quality HDPE fittings efficiently and consistently.

    For fabrication workshops, pipe manufacturers, utility contractors, and infrastructure developers across the GCC, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and international markets, the MACFIT450 offers dependable performance, reduced production time, and exceptional fabricated fitting quality for demanding thermoplastic piping applications.
