HYDRAULIC BUTTFUSION MACHINE 160MMM, MACFUSION160
The Macstroc MacFusion 160 Hydraulic Butt Fusion Machine is a high-performance pipe welding solution engineered for precise and reliable butt fusion of HDPE, PE, PP, and PVDF pipes and fittings. Designed to meet the demanding requirements of contractors, utility companies, infrastructure developers, and industrial pipe installation professionals, this machine delivers consistent welding performance across a wide range of applications.
Built with advanced hydraulic technology, the MacFusion 160 ensures strong, leak-proof, and durable pipe joints that comply with industry standards. Whether you are working on water supply networks, gas distribution systems, industrial process piping, irrigation projects, mining operations, or infrastructure developments, the MacFusion 160 provides exceptional accuracy and efficiency.
Widely trusted across the Middle East, GCC countries, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and other international markets, this machine is specifically designed to withstand challenging site conditions while maintaining superior welding quality.

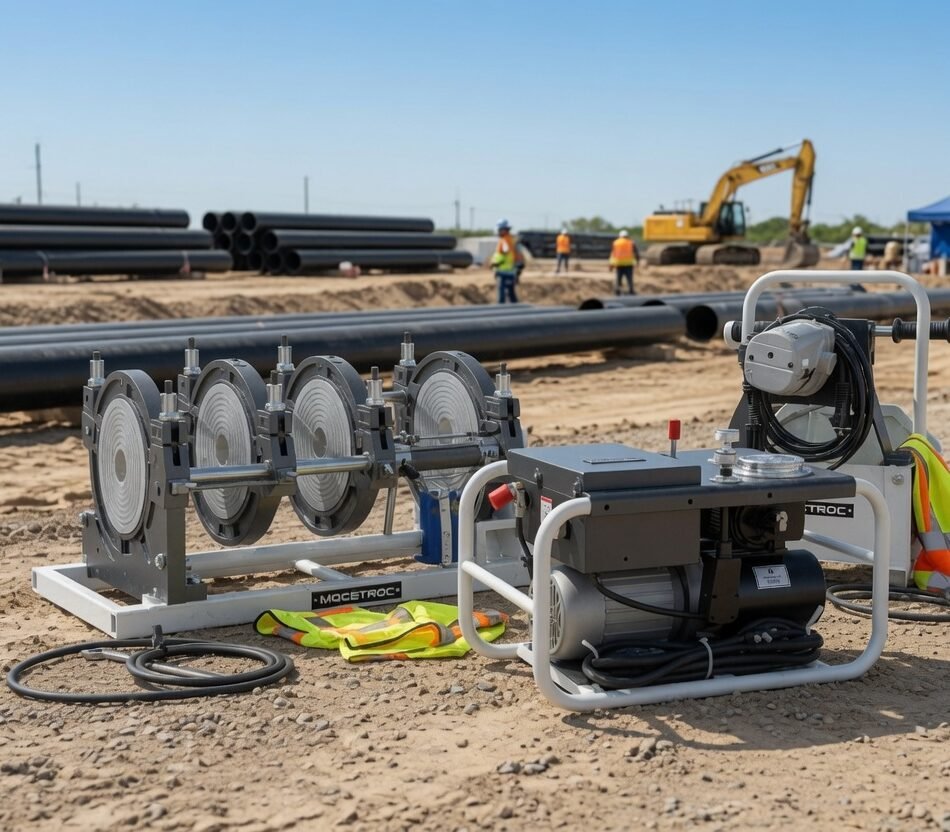

The Macstroc MacFusion Series features a robust machine frame, hydraulic unit, heating plate, planing tool, and carrying basket, making it a complete butt fusion welding solution for professional pipe installers. The removable PTFE-coated heating plate ensures uniform heat distribution and precise temperature control, resulting in high-quality fusion joints every time.
Its low starting pressure capability allows reliable welding of smaller diameter pipes while maintaining optimal fusion pressure throughout the welding cycle. The adjustable welding position enables easy handling of various pipe fittings and configurations, increasing productivity on-site.
To further enhance operational efficiency, the machine is equipped with a high-accuracy shockproof pressure gauge and a dual-channel timer that records both soaking and cooling times, helping operators maintain consistent welding procedures and quality control.
An optional data logger connection facility is also available, enabling welding parameter recording and traceability for quality assurance requirements in critical infrastructure projects.
| Specification | Details |
|---|---|
| Model | MACFUSION 160 |
| Pipe Size Range | 40, 63, 75, 90, 110, 125, 140, 160 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±5°C |
| Pressure Adjustment Range | 0 – 7 MPa |
| Working Voltage | 220-230V, 50/60Hz |
| Heating Plate Power | 1.0 kW |
| Planing Tool Power | 0.7 kW |
| Hydraulic Unit Power | 0.75 kW |
| Total Power | 2.45 kW |
| Weight | 125 kg |
- Suitable for welding PE, HDPE, PP, and PVDF pipes
- Heavy-duty hydraulic butt fusion system
- PTFE-coated removable heating plate
- Accurate digital temperature control
- Low starting pressure for small pipe diameters
- Adjustable welding position for fittings
- Shockproof high-precision pressure gauge
- Dual-channel timer for soaking and cooling cycles
- Rugged construction for field and industrial applications
- Optional data logger integration
- Reliable performance in harsh environments
- Ideal for GCC, Middle East, Africa, and international projects
The MacFusion 160 is widely used in:
- HDPE water supply pipelines
- Gas distribution networks
- Irrigation systems
- Sewage and drainage projects
- Industrial piping installations
- Mining operations
- Chemical processing plants
- Municipal infrastructure projects
- Oil & gas support applications
- Construction and utility projects
Its versatility makes it a preferred choice for contractors and engineering companies throughout the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, GCC region, Middle East, and Africa.
Why Choose Macstroc MacFusion 160?
The MacFusion 160 combines durability, precision, and ease of operation, making it an ideal investment for professional pipe welding applications. Its advanced hydraulic system, accurate temperature management, and reliable pressure control ensure strong and long-lasting fusion joints while minimizing installation errors and project downtime.
For contractors, distributors, and industrial users across the GCC, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and international markets, the Macstroc MacFusion 160 delivers dependable performance, increased productivity, and superior welding quality for every project.
