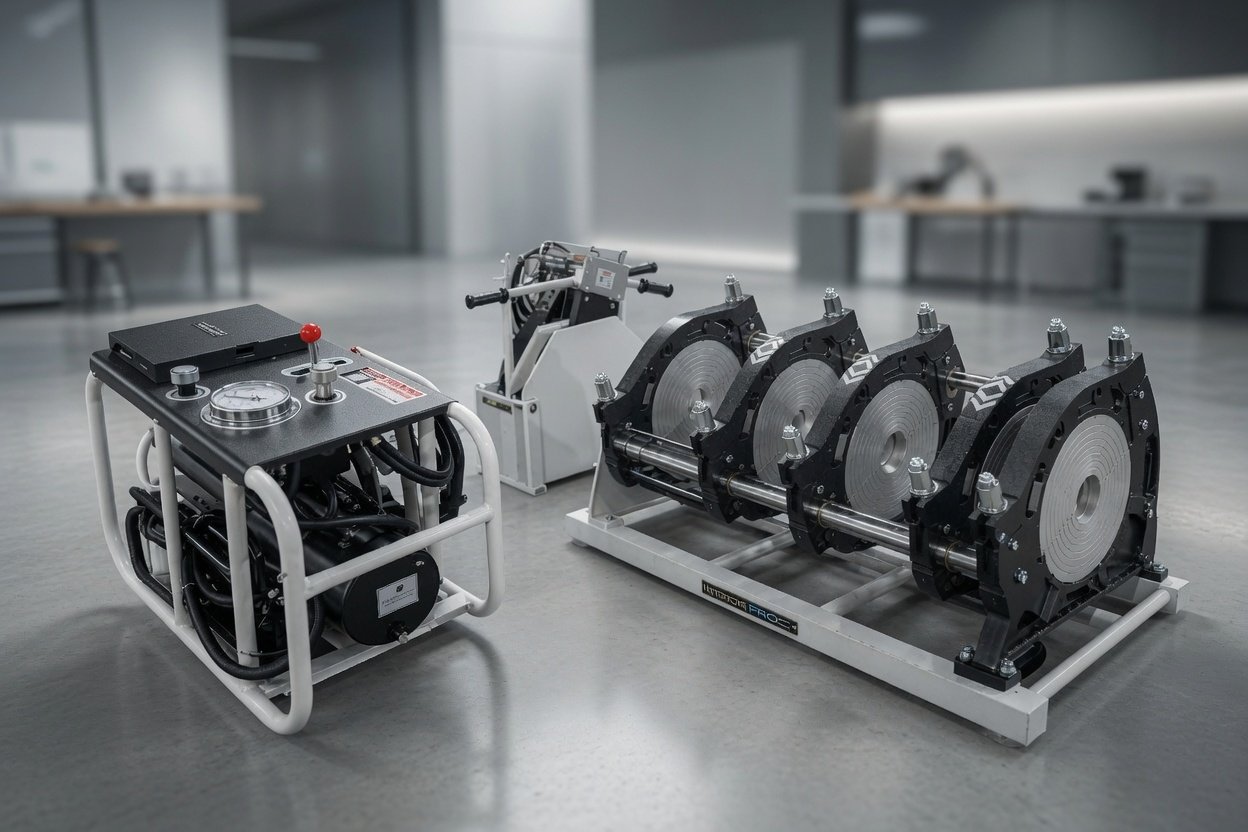

HYDRAULIC BUTTFUSION MACHINE 630MM, MACFUSION630
The Macstroc MacFusion 630 Hydraulic Butt Fusion Machine is a heavy-duty, high-capacity pipe welding solution engineered for the precise butt fusion of HDPE, PE, PP, and PVDF pipes and fittings. Designed to meet the demanding requirements of modern pipeline construction, infrastructure development, utility networks, and industrial piping projects, this advanced machine delivers exceptional welding accuracy, reliability, and performance across large-diameter pipe applications.
As part of the renowned Macstroc MacFusion Series, the MacFusion 630 combines innovative hydraulic technology with rugged construction to ensure strong, leak-proof, and long-lasting fusion joints. Whether used for water transmission pipelines, gas distribution networks, mining operations, sewage systems, irrigation projects, industrial processing facilities, or municipal infrastructure developments, this machine provides consistent results and superior operational efficiency.
The MacFusion Series Butt Fusion Machines are specifically designed for precision welding of plastic pipes and fittings manufactured from PE, PP, and PVDF materials. The machine consists of a robust basic frame, hydraulic unit, planing tool, heating plate, and carrying basket, providing a complete welding solution for professional contractors and pipeline installation companies.
The removable PTFE-coated heating plate ensures uniform heat distribution and precise temperature control, allowing operators to achieve consistent and high-quality welds. Its low starting pressure capability guarantees reliable welding performance for smaller pipe diameters, while the adjustable welding position enables easy handling of different pipe fittings and configurations.
For enhanced process control and quality assurance, the MacFusion 630 is equipped with a high-accuracy shockproof pressure gauge and a dual-channel timer that records both soaking and cooling times. These advanced features help operators maintain accurate welding procedures and ensure compliance with industry standards.
An optional data logger connection facility is available, enabling complete welding parameter recording and traceability, making it ideal for critical infrastructure projects that require documented quality control and reporting.
Widely trusted by contractors, utility providers, government infrastructure agencies, and industrial organizations across the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Egypt, Kenya, Nigeria, South Africa, and other international markets, the MacFusion 630 is built to perform reliably even in challenging environmental and site conditions.
| Specification | Details |
|---|---|
| Model | MACFUSION 630 |
| Pipe Size Range | 315, 355, 400, 450, 500, 560, 630 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±7°C |
| Pressure Adjustment Range | 0 – 8 MPa |
| Working Voltage | 380V [3PH] 50/60Hz |
| Heating Plate Power | 9.35 kW |
| Planing Tool Power | 2.2 kW |
| Hydraulic Unit Power | 1.5 kW |
| Crane Power | 0.25T / 1.1 kW |
| Total Power | 13.05 kW |
| Weight | 780 kg |
- Suitable for welding HDPE, PE, PP, and PVDF pipes
- Large diameter hydraulic butt fusion machine
- PTFE-coated removable heating plate
- Precise temperature control system
- High-strength hydraulic operation
- Adjustable welding position for fittings
- Shockproof precision pressure gauge
- Dual-channel timer for soaking and cooling cycles
- Rugged construction for industrial applications
- Reliable welding performance for demanding projects
- Optional data logger integration for weld traceability
- Designed for GCC, Middle East, Africa, and global markets
- Easy operation and maintenance
- High-quality and leak-proof fusion joints
The MacFusion 630 Hydraulic Butt Fusion Machine is extensively used in:
- HDPE water transmission pipelines
- Municipal water supply projects
- Gas distribution networks
- Industrial process piping systems
- Sewage and drainage infrastructure
- Irrigation and agricultural projects
- Mining and slurry transportation systems
- Chemical processing facilities
- Oil & gas support infrastructure
- Utility and construction projects
- Large-scale pipeline installations
- Infrastructure development projects
Its versatility and reliability make it a preferred choice for contractors and engineering companies throughout the GCC region, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Egypt, Kenya, Tanzania, Nigeria, and South Africa.
Why Choose Macstroc MacFusion 630?
The Macstroc MacFusion 630 Hydraulic Butt Fusion Machine is engineered for professionals who require precision, durability, and efficiency in large-diameter pipe welding applications. Its advanced hydraulic system, high-capacity heating plate, precision pressure control, and robust construction enable operators to achieve reliable fusion joints with maximum productivity.
Built to withstand demanding field conditions across the GCC, Middle East, Africa, and international markets, the MacFusion 630 offers outstanding performance for water, gas, industrial, mining, and infrastructure projects. With optional data logging capabilities, precise welding controls, and a comprehensive hydraulic fusion system, it provides the reliability and traceability required for modern pipeline installation projects.
For contractors, distributors, infrastructure developers, and industrial users throughout UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Africa, and the broader Middle East, the MacFusion 630 delivers a professional-grade welding solution that ensures long-term pipeline integrity, reduced maintenance costs, and superior project outcomes.
