HYDRAULIC BUTTFUSION MACHINE 450MM, MACFUSION450
The Macstroc MacFusion 450 Hydraulic Butt Fusion Machine is a heavy-duty industrial welding solution engineered for the precise butt fusion of HDPE, PE, PP, and PVDF pipes and fittings. Designed for large-diameter pipeline projects, this advanced hydraulic fusion machine delivers exceptional welding accuracy, strength, and reliability for demanding infrastructure and industrial applications.
With a welding range from 200 mm to 450 mm, the MacFusion 450 is ideally suited for contractors, utility providers, municipalities, and industrial operators involved in large-scale water transmission systems, gas distribution networks, sewage projects, irrigation infrastructure, mining operations, and industrial process piping installations.

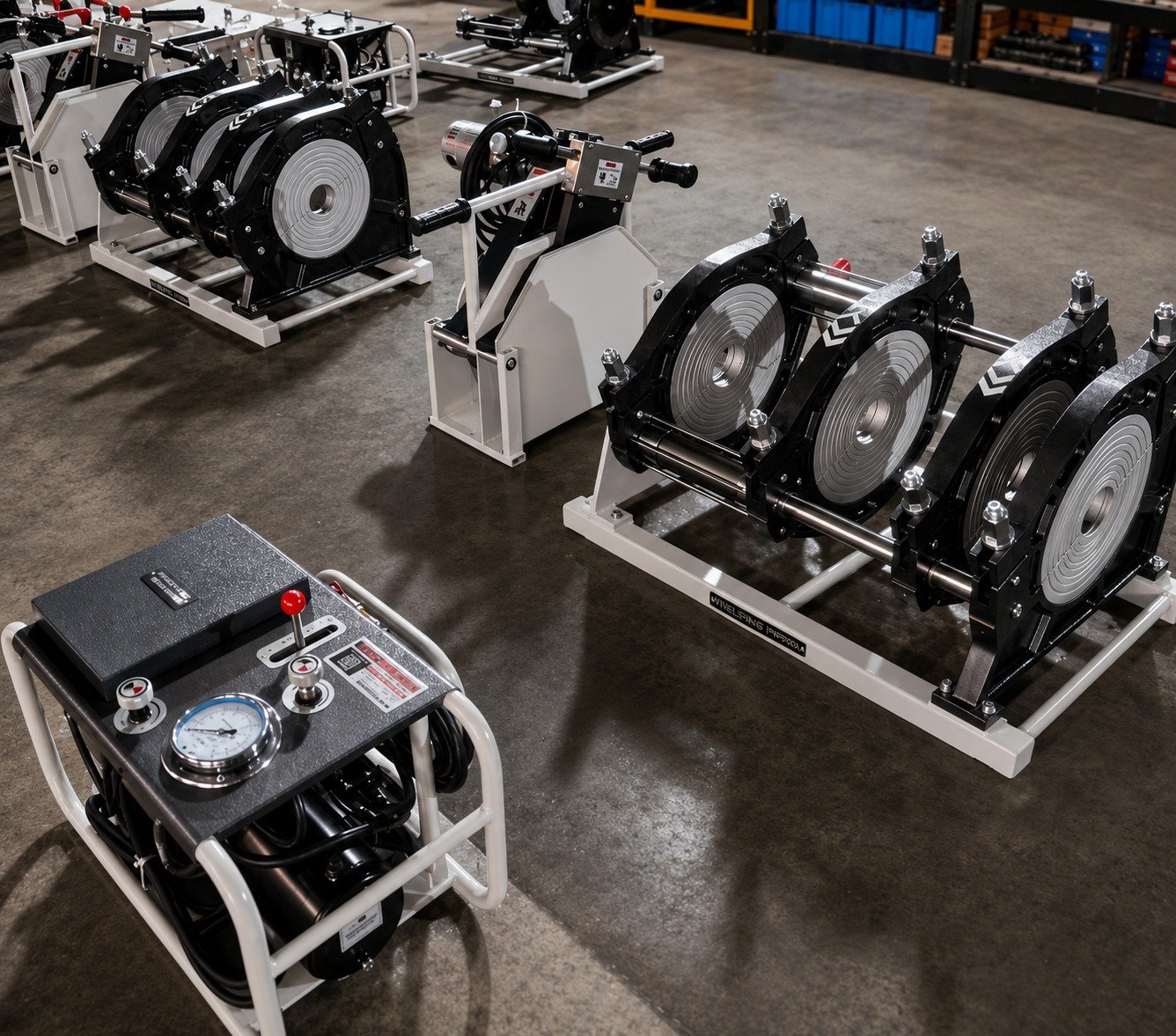

Built with a robust machine frame, powerful hydraulic unit, precision planing tool, PTFE-coated heating plate, and integrated storage basket, the MacFusion 450 ensures smooth and efficient welding operations even in challenging field conditions. The removable PTFE-coated heating plate provides uniform heat distribution and accurate temperature control, producing strong, leak-proof fusion joints that meet international welding standards.
The hydraulic system offers precise pressure control throughout the fusion process, while the shockproof pressure gauge ensures accurate monitoring of welding parameters. The dual-channel timer records soaking and cooling times, helping operators maintain consistent welding procedures and quality assurance standards.
For projects requiring welding traceability and documentation, an optional data logger connection facility can be incorporated into the machine. This feature makes the MacFusion 450 an ideal choice for government infrastructure projects, utility networks, and industrial pipeline installations throughout the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, and international markets.
Designed for durability, efficiency, and long-term performance, the MacFusion 450 delivers the reliability professionals demand for critical pipe fusion applications.
| Specification | Details |
|---|---|
| Model | MACFUSION 450 |
| Pipe Size Range | 200, 225, 250, 280, 315, 355, 400, 450 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±7°C |
| Pressure Adjustment Range | 0 – 8 MPa |
| Working Voltage | 380V (3PH), 50/60Hz |
| Heating Plate Power | 5.38 kW |
| Planing Tool Power | 1.5 kW |
| Hydraulic Unit Power | 1.5 kW |
| Crane Power / Lifting Capacity | 0.25T / 1.1 kW |
| Total Power | 8.38 kW |
| Weight | 560 kg |
- Suitable for welding HDPE, PE, PP, and PVDF pipes
- Hydraulic butt fusion technology for large-diameter pipelines
- Welding capacity from 200 mm to 450 mm
- PTFE-coated removable heating plate
- Maximum heating temperature of 270°C
- Accurate hydraulic pressure control system
- High-precision shockproof pressure gauge
- Dual-channel timer for soaking and cooling cycles
- Rugged industrial construction
- Optional data logger integration
- Designed for infrastructure and utility projects
- Reliable performance in harsh site environments
The MacFusion 450 is widely used in:
- HDPE water transmission pipelines
- Municipal water distribution systems
- Gas distribution networks
- Sewage and drainage infrastructure
- Irrigation and agricultural projects
- Industrial process piping
- Mining operations
- Chemical processing facilities
- Oil & gas support projects
- Large-scale construction and utility developments
Its robust design and dependable performance make it a preferred choice for contractors and engineering companies across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, GCC region, Middle East, and Africa.
Why Choose Macstroc MacFusion 450?
The MacFusion 450 Hydraulic Butt Fusion Machine is specifically designed for large-diameter pipe welding applications where precision, durability, and productivity are critical. Its powerful hydraulic system, accurate temperature control, integrated lifting mechanism, and heavy-duty construction ensure efficient operation and high-quality fusion joints across demanding industrial and infrastructure projects.
For contractors, distributors, and industrial users throughout the GCC, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and international markets, the MacFusion 450 offers a dependable solution for professional HDPE, PE, PP, and PVDF pipe fusion requirements.
