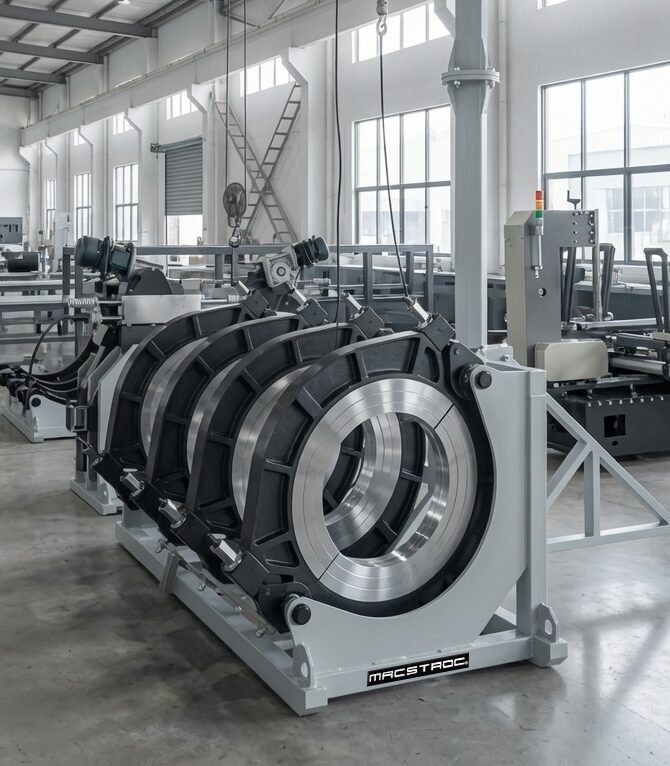

HYDRAULIC BUTTFUSION MACHINE 1000MM, MACFUSION1000
Macstroc MacFusion 1000 Hydraulic Butt Fusion Machine is a high-capacity industrial pipe welding machine designed for precision butt fusion of HDPE, PE, PP, and PVDF pipes and fittings from 630mm to 1000mm diameter. Built with a powerful hydraulic system, PTFE-coated heating plate, precision pressure control, and heavy-duty construction, it delivers strong, leak-proof, and durable fusion joints for large-scale infrastructure and pipeline projects. Ideal for water transmission, gas distribution, mining, industrial piping, sewage networks, and utility installations across the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, and international markets, the MacFusion 1000 ensures exceptional welding quality, productivity, and reliability in demanding working environments.
The Macstroc MacFusion 1000 Hydraulic Butt Fusion Machine is a premium heavy-duty welding solution engineered for the precise fusion of large-diameter HDPE, PE, PP, and PVDF pipes and fittings. Designed to meet the demanding requirements of utility contractors, infrastructure developers, industrial operators, and pipeline construction companies, this advanced butt fusion machine delivers outstanding welding performance, operational efficiency, and long-term reliability.
As one of the largest models in the Macstroc MacFusion Series, the MacFusion 1000 is specifically developed for major pipeline projects where weld integrity, accuracy, and productivity are critical. The machine is capable of welding pipe sizes ranging from 630mm to 1000mm, making it an ideal solution for large-scale water transmission systems, gas distribution networks, industrial process pipelines, sewage infrastructure, mining operations, irrigation projects, and municipal utility developments.
The MacFusion Series is designed for precision butt welding of plastic pipes and fittings manufactured from PE, PP, and PVDF materials. Each machine is supplied with a robust machine frame, hydraulic power unit, planing tool, PTFE-coated heating plate, and support basket, providing a complete and reliable welding system for professional applications.
The removable PTFE-coated heating plate provides uniform heat distribution and accurate temperature control, ensuring consistent fusion quality and superior weld strength. Its advanced hydraulic system maintains precise welding pressure throughout the fusion cycle, helping operators achieve reliable and repeatable results across all pipe sizes.
The adjustable welding position simplifies the handling of large pipes and fittings, improving alignment accuracy and reducing installation time. This feature is particularly beneficial for large infrastructure projects where productivity and efficiency are essential.
To support quality control and process consistency, the MacFusion 1000 is equipped with a high-accuracy shockproof pressure gauge and a dual-channel timer that records both soaking and cooling times. These features enable operators to follow standardized welding procedures and maintain compliance with project specifications.
For projects requiring full welding traceability, the MacFusion 1000 can be equipped with an optional data logger connection facility, allowing welding parameters to be recorded and documented for quality assurance and regulatory compliance.
Built for Infrastructure, Utility, and Industrial Applications
The MacFusion 1000 is designed to perform reliably in challenging field environments. Its rugged construction and powerful hydraulic operation make it suitable for large-scale infrastructure projects across the GCC, Middle East, Africa, and global markets.
Whether installed on municipal water transmission projects in Saudi Arabia, industrial facilities in the UAE, utility infrastructure in Qatar, pipeline developments in Oman, or mining operations across Africa, the MacFusion 1000 provides dependable performance and professional-grade welding quality.
Its ability to handle large-diameter pipelines makes it a preferred choice for contractors, government authorities, engineering consultants, and utility companies that require efficient and reliable pipe fusion equipment.
| Specification | Details |
|---|---|
| Model | MACFUSION 1000 |
| Pipe Size Range | 630, 710, 800, 900, 1000 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±7°C |
| Pressure Adjustment Range | 0 – 16 MPa |
| Working Voltage | 380V [3PH] 50/60Hz |
| Heating Plate Power | 17.5 kW |
| Planing Tool Power | 3 kW |
| Hydraulic Unit Power | 3 kW |
| Crane Power | 0.5T / 1.1 kW |
| Total Power | 23.5 kW |
| Weight | 2451 kg |
- Suitable for welding HDPE, PE, PP, and PVDF pipes
- Pipe welding range from 630mm to 1000mm
- Heavy-duty hydraulic butt fusion technology
- PTFE-coated removable heating plate
- Accurate temperature control system
- High-capacity hydraulic power unit
- Adjustable welding position for easy pipe handling
- High-precision shockproof pressure gauge
- Dual-channel timer for soaking and cooling cycles
- Rugged industrial construction
- Consistent and leak-proof fusion joints
- Optional data logger integration
- Designed for GCC, Middle East, Africa, and international projects
- Reliable operation in demanding site conditions
- Easy maintenance and user-friendly controls
The MacFusion 1000 Hydraulic Butt Fusion Machine is widely used in:
- Water transmission and distribution pipelines
- Municipal infrastructure projects
- Gas distribution systems
- Industrial process piping
- Sewage and drainage networks
- Irrigation and agricultural projects
- Mining and slurry transportation systems
- Chemical and petrochemical plants
- Oil & gas support infrastructure
- Utility network installations
- Power generation projects
- Large-scale construction and engineering developments
Its versatility and durability make it an excellent solution for contractors and infrastructure companies operating throughout the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, GCC region, Middle East, Africa, Egypt, Kenya, Nigeria, South Africa, and other international markets.
Why Choose Macstroc MacFusion 1000?
The Macstroc MacFusion 1000 Hydraulic Butt Fusion Machine is engineered for large-scale pipeline projects that demand maximum reliability, precision, and performance. Its advanced hydraulic technology, powerful heating system, accurate pressure control, and robust construction ensure high-quality fusion joints that support long-term pipeline integrity.
Trusted by contractors, distributors, utility providers, and industrial organizations across the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, and international markets, the MacFusion 1000 offers a complete professional welding solution for critical infrastructure applications. With its exceptional capacity, optional welding data logging, and proven field performance, the MacFusion 1000 helps organizations improve productivity, reduce installation risks, and achieve superior project outcomes.
