HYDRAULIC BUTTFUSION MACHINE 250MM, MACFUSION250
The Macstroc MacFusion 250 Hydraulic Butt Fusion Machine is a professional-grade welding solution designed for accurate and dependable butt fusion of HDPE, PE, PP, and PVDF pipes and fittings. Engineered for heavy-duty field and industrial applications, this machine delivers strong, leak-proof joints for critical pipeline systems.
With a welding range from 63 mm to 250 mm, the MacFusion 250 is ideal for contractors, utility companies, infrastructure developers, and industrial piping professionals working on water supply, gas distribution, irrigation, drainage, and process piping projects. Its robust hydraulic system ensures stable fusion pressure and consistent weld quality, even in demanding environments.

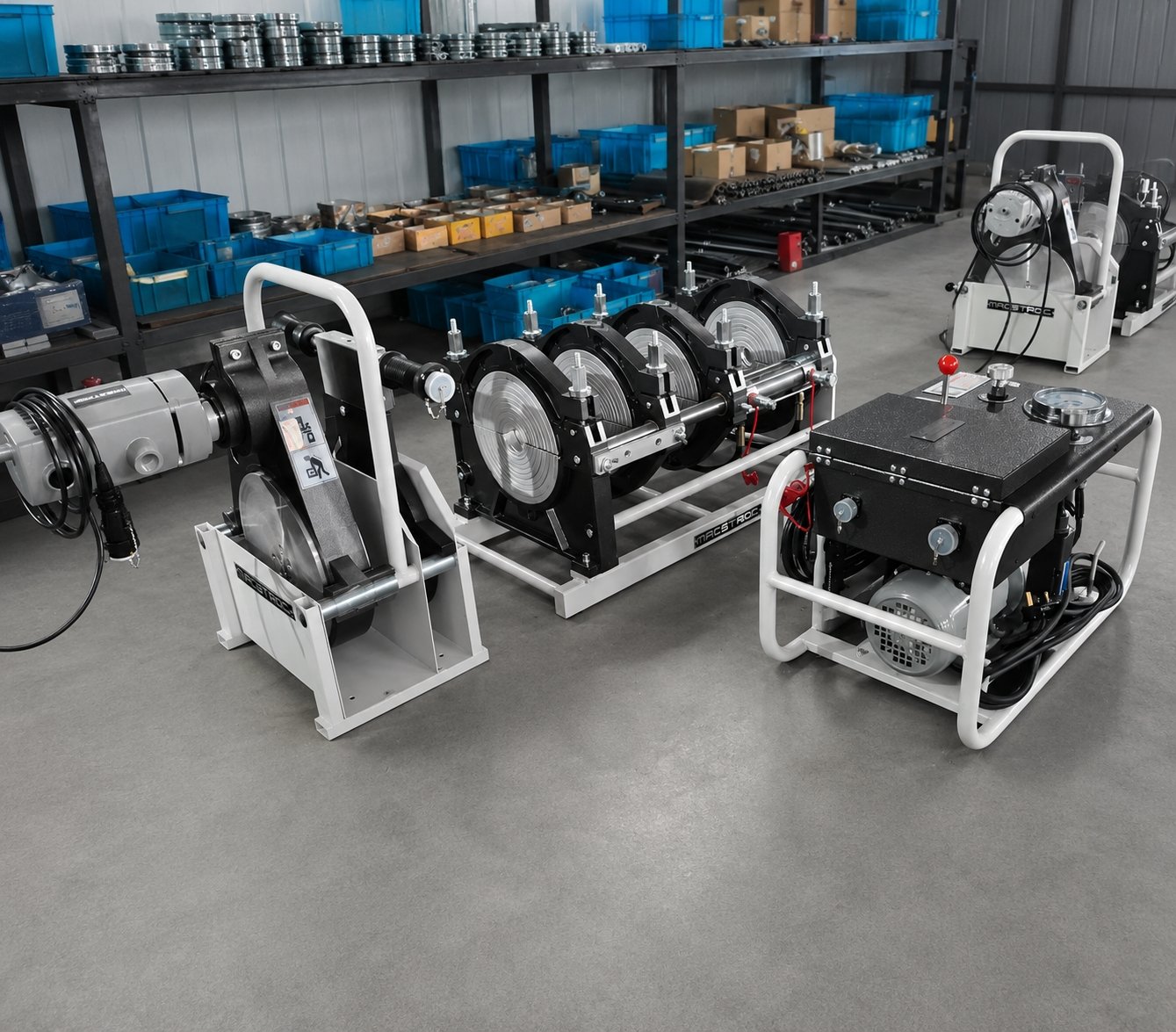

The MacFusion Series combines a durable machine frame, hydraulic power unit, precision heating plate, planing tool, and carrying basket into one efficient welding package. The removable PTFE-coated heating plate provides uniform heat distribution and precise temperature control, ensuring high-quality fusion joints across all compatible materials.
Designed for productivity and reliability, the MacFusion 250 features adjustable welding positions for handling different fittings, a high-accuracy shockproof pressure gauge, and a dual-channel timer for monitoring soaking and cooling cycles. An optional data logger connection is available for welding traceability and quality assurance on large-scale infrastructure projects.
Trusted by professionals across the Middle East, GCC countries, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and international markets, the MacFusion 250 is built to perform reliably in harsh site conditions while maintaining superior welding accuracy.
| Specification | Details |
|---|---|
| Model | MACFUSION 250 |
| Pipe Size Range | 63, 75, 90, 110, 125, 140, 160, 180, 200, 225, 250 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±5°C |
| Pressure Adjustment Range | 0 – 7 MPa |
| Working Voltage | 220-230V, 50/60Hz |
| Heating Plate Power | 2.0 kW |
| Planing Tool Power | 1.1 kW |
| Hydraulic Unit Power | 0.75 kW |
| Total Power | 3.8 kW |
| Weight | 140 kg |
-
Suitable for welding PE, HDPE, PP, and PVDF pipes
-
Hydraulic butt fusion system for stable welding pressure
-
PTFE-coated removable heating plate for uniform heating
-
Precise temperature control up to 270°C
-
Adjustable welding position for various fittings
-
Shockproof high-precision pressure gauge
-
Dual-channel timer for soaking and cooling monitoring
-
Rugged construction for field and industrial use
-
Optional data logger integration for traceability
-
Reliable performance in demanding environments
The MacFusion 250 is widely used in:
-
HDPE water supply pipelines
-
Gas distribution networks
-
Irrigation systems
-
Sewage and drainage projects
-
Industrial piping installations
-
Mining and infrastructure projects
-
Chemical and process plants
-
Municipal utility projects
-
Construction and pipeline contracting
Its versatility and durability make it a preferred choice for projects across the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.
Why Choose Macstroc MacFusion 250?
The MacFusion 250 offers the ideal combination of power, precision, and durability for medium to large diameter pipe welding applications. Its advanced hydraulic system, accurate temperature management, and reliable pressure control help operators achieve strong, long-lasting fusion joints with minimal downtime.
For contractors, distributors, and industrial users throughout the GCC, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and international markets, the Macstroc MacFusion 250 delivers dependable performance, higher productivity, and consistent welding quality for every project.
