HYDRAULIC BUTTFUSION MACHINE 500MM, MACFUSION500
The Macstroc MacFusion 500 Hydraulic Butt Fusion Machine is a high-capacity industrial welding solution designed for the precision butt fusion of HDPE, PE, PP, and PVDF pipes and fittings. Built to handle large-diameter pipeline projects, this advanced hydraulic fusion machine delivers exceptional welding performance, reliability, and efficiency for demanding infrastructure and industrial applications.
With a welding range from 200 mm to 500 mm, the MacFusion 500 is ideal for large-scale water transmission systems, gas distribution networks, sewage and drainage projects, irrigation infrastructure, mining operations, industrial process piping, and municipal utility installations. Engineered with a robust machine frame and powerful hydraulic system, the machine ensures accurate pressure control and consistent fusion quality across all compatible pipe materials.

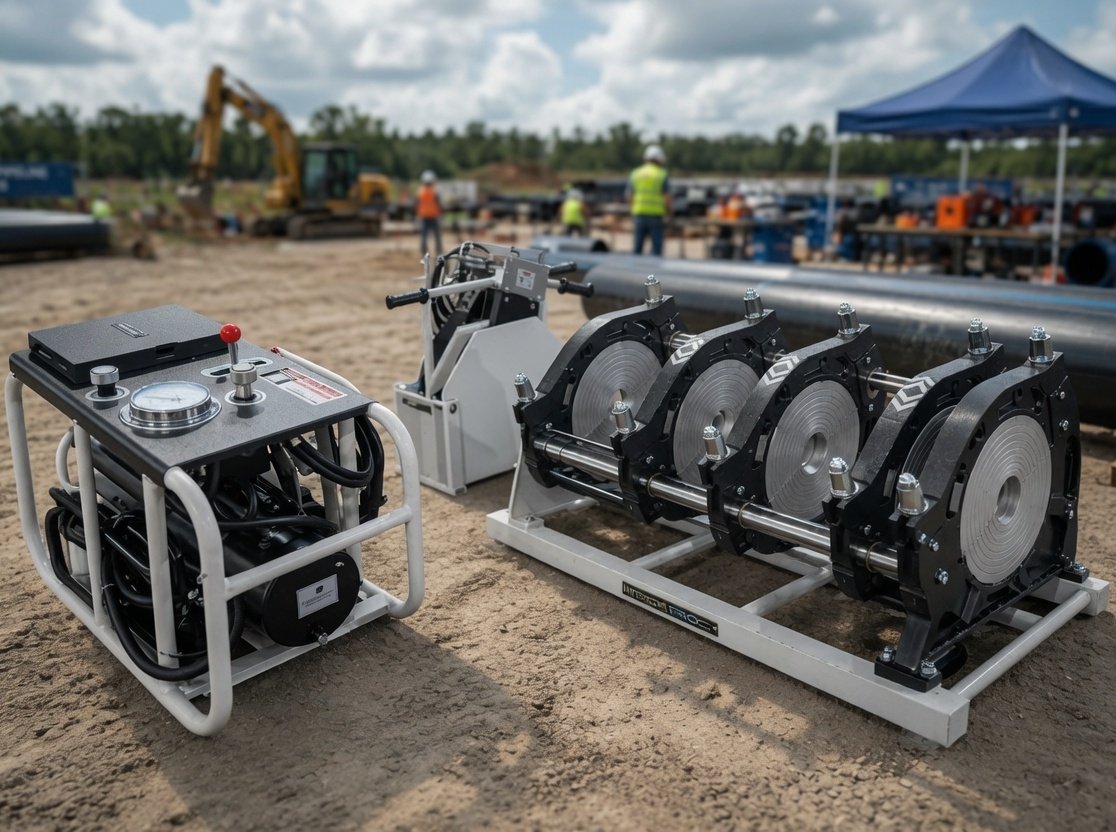

The MacFusion Series includes a durable basic frame, hydraulic power unit, precision planing tool, PTFE-coated heating plate, and storage basket. The removable PTFE-coated heating plate provides uniform heat distribution and precise temperature control, ensuring strong, leak-free fusion joints that comply with international welding standards.
For improved operational efficiency, the MacFusion 500 is equipped with a high-accuracy shockproof pressure gauge and a dual-channel timer that records soaking and cooling times. These features help operators maintain precise welding parameters and achieve repeatable, high-quality results on every weld.
The machine also features an integrated lifting system, allowing operators to handle larger pipe sections safely and efficiently. An optional data logger connection can be added for recording welding parameters and maintaining complete quality traceability, making it ideal for government, utility, and industrial projects.
Trusted by contractors and pipeline professionals across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, GCC countries, Middle East, Africa, and international markets, the MacFusion 500 is engineered to deliver reliable performance under the toughest working conditions.
| Specification | Details |
|---|---|
| Model | MACFUSION 500 |
| Pipe Size Range | 200, 225, 250, 280, 315, 355, 400, 450, 500 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±7°C |
| Pressure Adjustment Range | 0 – 8 MPa |
| Working Voltage | 380V (3PH), 50/60Hz |
| Heating Plate Power | 6.5 kW |
| Planing Tool Power | 1.5 kW |
| Hydraulic Unit Power | 1.5 kW |
| Crane Power / Lifting Capacity | 0.25T / 1.1 kW |
| Total Power | 9.5 kW |
| Weight | 700 kg |
- Suitable for welding HDPE, PE, PP, and PVDF pipes
- Hydraulic butt fusion technology for large-diameter pipelines
- Welding range from 200 mm to 500 mm
- PTFE-coated removable heating plate
- Precise temperature control up to 270°C
- High-accuracy hydraulic pressure control system
- Shockproof pressure gauge for reliable monitoring
- Dual-channel timer for soaking and cooling cycles
- Integrated lifting system for easier pipe handling
- Heavy-duty industrial construction
- Optional data logger integration
- Designed for GCC, Middle East, and Africa infrastructure projects
The MacFusion 500 is widely used in:
- HDPE water transmission pipelines
- Municipal water distribution systems
- Gas distribution networks
- Sewage and wastewater infrastructure
- Irrigation and agricultural projects
- Industrial process piping
- Mining and infrastructure developments
- Chemical processing plants
- Oil & gas support projects
- Large-scale utility and construction projects
Its powerful performance and robust construction make it a preferred choice for contractors, utilities, and engineering companies across the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.
Why Choose Macstroc MacFusion 500?
The MacFusion 500 Hydraulic Butt Fusion Machine is engineered for professionals who require precision, durability, and high productivity in large-diameter pipe fusion projects. Its advanced hydraulic system, powerful heating plate, integrated lifting mechanism, and rugged industrial construction ensure reliable welding performance and long-lasting fusion joints.
For contractors, distributors, utility providers, and industrial users throughout the GCC, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and global markets, the MacFusion 500 provides a dependable solution for demanding HDPE, PE, PP, and PVDF pipe welding applications.
