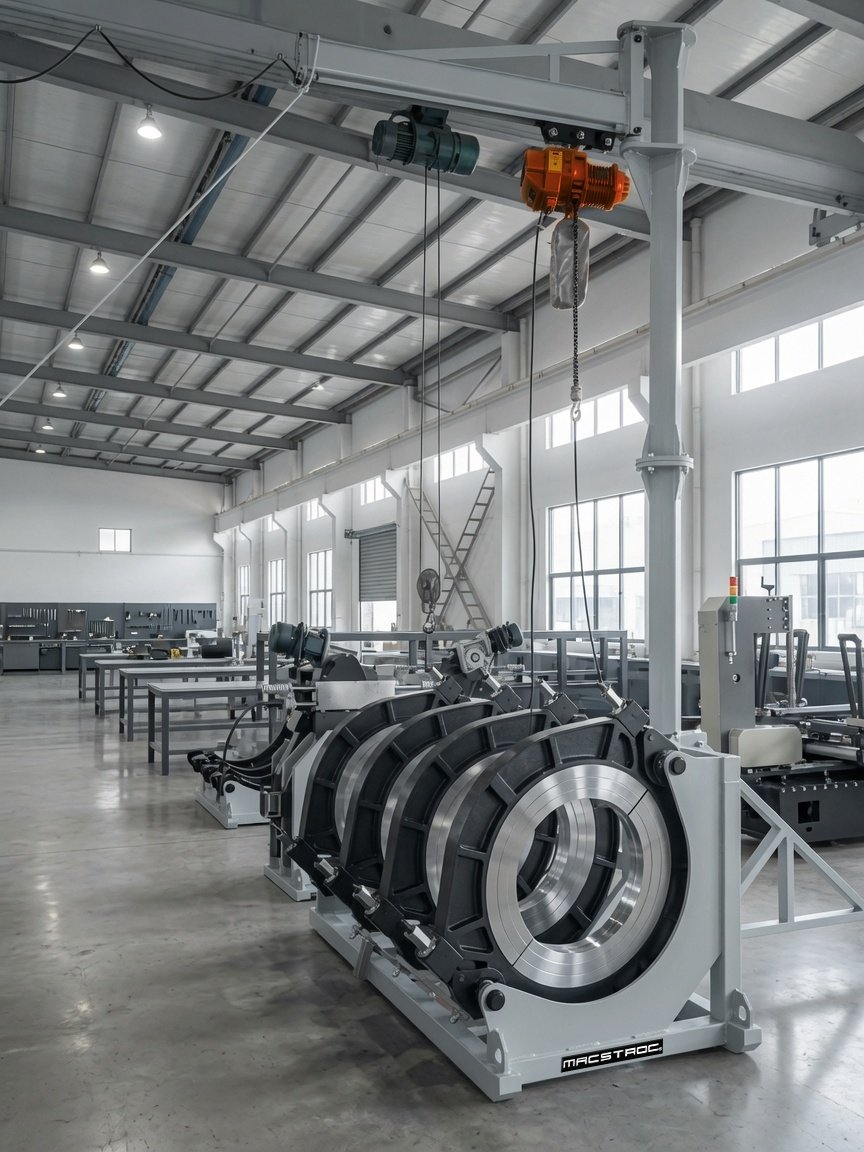

HYDRAULIC BUTTFUSION MACHINE 800MM, MACFUSION800
Macstroc MacFusion 800 Hydraulic Butt Fusion Machine is a heavy-duty industrial pipe welding machine designed for precision butt fusion of HDPE, PE, PP, and PVDF pipes and fittings ranging from 450mm to 800mm. Equipped with a powerful hydraulic system, PTFE-coated heating plate, precision pressure control, and robust machine frame, it delivers strong, leak-proof, and long-lasting fusion joints for large-scale pipeline projects. Ideal for water supply, gas distribution, industrial piping, mining, sewage, and infrastructure developments across the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, and international markets, the MacFusion 800 ensures reliable performance, high productivity, and superior welding quality even in demanding site conditions.
The Macstroc MacFusion 800 Hydraulic Butt Fusion Machine is a premium large-diameter pipe welding solution engineered for the professional fusion welding of HDPE, PE, PP, and PVDF pipes and fittings. Designed to meet the rigorous demands of infrastructure, utility, industrial, and pipeline construction projects, this advanced hydraulic butt fusion machine delivers exceptional welding accuracy, operational efficiency, and long-term reliability.
As part of the highly regarded Macstroc MacFusion Series, the MacFusion 800 is built with a rugged machine frame, powerful hydraulic unit, precision planing tool, PTFE-coated heating plate, and support basket to provide a complete and dependable welding solution. The machine is specifically developed for large-scale pipeline installations where weld quality, consistency, and productivity are critical to project success.
With a welding capacity of 450mm to 800mm, the MacFusion 800 is ideally suited for large-diameter pipeline applications in water transmission networks, gas distribution systems, sewage infrastructure, mining operations, industrial process piping, irrigation projects, and municipal utility developments.
The removable PTFE-coated heating plate ensures even heat distribution across pipe surfaces while maintaining precise temperature control. This results in high-quality fusion joints with superior strength and durability. The machine’s hydraulic operating system provides smooth and controlled welding pressure throughout the fusion process, minimizing operator error and ensuring consistent results.
The MacFusion 800 also features an adjustable welding position that enables easy alignment and handling of different pipe sizes and fittings. This flexibility improves installation efficiency and reduces setup time on-site.
For enhanced welding control and quality assurance, the machine is equipped with a high-accuracy shockproof pressure gauge and a dual-channel timer that records both soaking and cooling times. These features help operators maintain accurate welding parameters and comply with industry standards for critical infrastructure projects.
An optional data logger integration facility is available, allowing welding parameters to be recorded and stored for quality documentation, project traceability, and compliance reporting. This makes the MacFusion 800 an excellent choice for government projects, utility authorities, engineering contractors, and industrial organizations that require detailed welding records.
Engineered for Large-Scale Pipeline Projects
The MacFusion 800 is specifically designed for demanding pipeline construction environments where reliability and productivity are essential. Its heavy-duty construction enables it to withstand harsh site conditions commonly encountered in desert, industrial, mining, and infrastructure projects.
The machine performs exceptionally well in challenging climates across the GCC countries, Middle East, and Africa, where high temperatures, dust, and demanding working conditions require robust and dependable equipment. Whether installed on municipal water networks in Saudi Arabia, gas distribution systems in the UAE, infrastructure developments in Qatar, industrial projects in Oman, or mining operations across Africa, the MacFusion 800 consistently delivers professional-grade welding performance.
| Specification | Details |
|---|---|
| Model | MACFUSION 800 |
| Pipe Size Range | 450, 500, 560, 630, 710, 800 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±7°C |
| Pressure Adjustment Range | 0 – 16 MPa |
| Working Voltage | 380V [3PH] 50/60Hz |
| Heating Plate Power | 12.5 kW |
| Planing Tool Power | 2.2 kW |
| Hydraulic Unit Power | 3 kW |
| Crane Power | 0.5T / 1.1 kW |
| Total Power | 17.7 kW |
| Weight | 1765 kg |
- Suitable for welding HDPE, PE, PP, and PVDF pipes
- Pipe welding range from 450mm to 800mm
- Heavy-duty hydraulic butt fusion system
- Robust machine frame for industrial applications
- PTFE-coated removable heating plate
- Accurate temperature control system
- Adjustable welding position for various fittings
- High-precision shockproof pressure gauge
- Dual-channel timer for soaking and cooling cycles
- Powerful hydraulic operation for large-diameter pipes
- Optional welding data logger integration
- Low maintenance and user-friendly operation
- Designed for GCC, Middle East, Africa, and international projects
- Suitable for demanding infrastructure and utility applications
The MacFusion 800 Hydraulic Butt Fusion Machine is widely used in:
- HDPE water transmission pipelines
- Municipal water supply projects
- Gas distribution networks
- Sewage and drainage systems
- Irrigation and agricultural infrastructure
- Mining slurry transportation systems
- Industrial process piping
- Chemical and petrochemical plants
- Utility infrastructure developments
- Oil & gas support projects
- Power and energy sector applications
- Large-scale construction and engineering projects
Why Choose Macstroc MacFusion 800?
The Macstroc MacFusion 800 Hydraulic Butt Fusion Machine offers the perfect combination of power, precision, durability, and efficiency for large-diameter pipe welding projects. Its advanced hydraulic technology, high-capacity heating system, precision pressure control, and robust industrial construction make it a preferred choice for contractors, distributors, utility providers, and engineering companies worldwide.
Widely used throughout the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, GCC region, Middle East, Africa, and global markets, the MacFusion 800 delivers exceptional welding quality, increased productivity, reduced project downtime, and long-term pipeline reliability, making it an ideal investment for professional pipeline installation and infrastructure development projects.
