HYDRAULIC BUTTFUSION MACHINE 315MM, MACFUSION315
The Macstroc MacFusion 315 Hydraulic Butt Fusion Machine is a powerful and reliable pipe welding solution designed for precision butt fusion of HDPE, PE, PP, and PVDF pipes and fittings. Built for professional contractors, utility companies, infrastructure developers, and industrial piping specialists, the MacFusion 315 delivers exceptional welding performance for medium and large-diameter pipeline projects.
With a welding capacity ranging from 90 mm to 315 mm, this advanced hydraulic fusion machine is ideal for water transmission networks, gas distribution systems, industrial process pipelines, irrigation projects, mining operations, and municipal infrastructure developments. Its rugged construction and high-performance hydraulic system ensure consistent pressure control and superior fusion quality, even in demanding job site conditions.

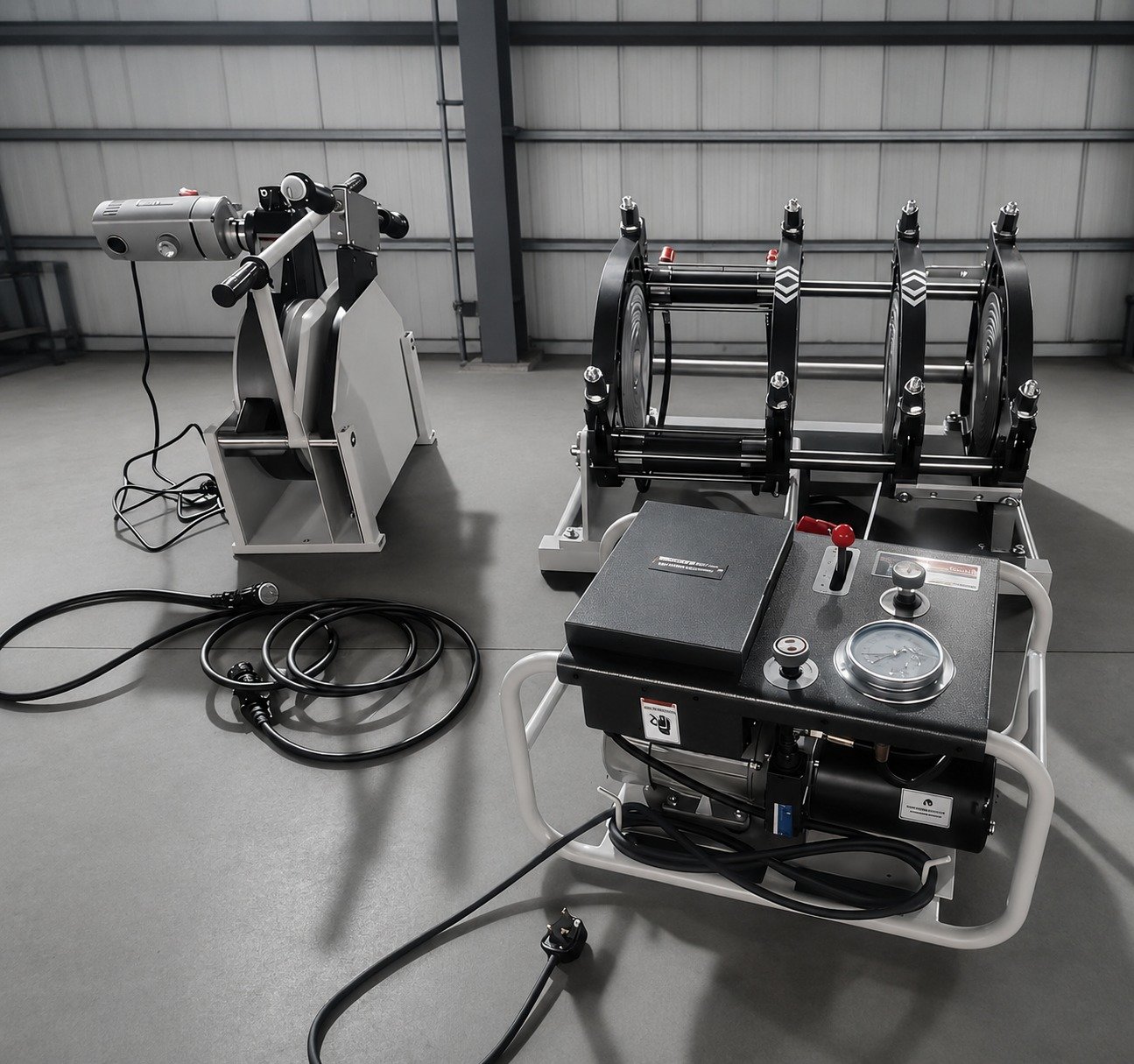

The MacFusion Series incorporates a durable machine frame, hydraulic unit, precision planing tool, PTFE-coated heating plate, and carrying basket to provide a complete welding solution. The removable PTFE-coated heating plate offers accurate temperature control and uniform heat distribution, ensuring strong, leak-proof fusion joints that meet industry requirements.
Designed for maximum efficiency, the machine features an adjustable welding position for handling different pipe fittings, a shockproof high-accuracy pressure gauge, and a dual-channel timer that records soaking and cooling times. These features help operators achieve repeatable welding results while improving productivity and reducing installation errors.
For projects requiring welding traceability and quality assurance documentation, an optional data logger connection facility can be integrated into the machine. This makes the MacFusion 315 an excellent choice for large infrastructure and utility projects across the GCC, Middle East, Africa, UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, and international markets.
| Specification | Details |
|---|---|
| Model | MACFUSION 315 |
| Pipe Size Range | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 mm |
| Heating Plate Maximum Temperature | 270°C |
| Temperature Deviation in Surface | ±5°C |
| Pressure Adjustment Range | 0 – 7 MPa |
| Working Voltage | 220-230V, 50/60Hz |
| Heating Plate Power | 3.0 kW |
| Planing Tool Power | 1.1 kW |
| Hydraulic Unit Power | 0.75 kW |
| Total Power | 4.85 kW |
| Weight | 200 kg |
- Suitable for welding PE, HDPE, PP, and PVDF pipes
- Hydraulic butt fusion system for precise pressure control
- Welding range from 90 mm to 315 mm
- PTFE-coated removable heating plate
- Maximum heating temperature of 270°C
- High-accuracy shockproof pressure gauge
- Dual-channel timer for soaking and cooling cycles
- Adjustable welding position for fittings
- Rugged design for industrial and field applications
- Optional data logger integration
- Reliable performance in harsh working environments
The MacFusion 315 is widely used in:
- HDPE water supply pipelines
- Gas distribution networks
- Industrial process piping
- Irrigation and agricultural projects
- Sewage and drainage systems
- Mining and infrastructure developments
- Municipal utility installations
- Chemical processing plants
- Oil & gas support applications
- Construction and pipeline contracting projects
Its robust design and dependable performance make it a preferred choice for contractors and engineering companies throughout the GCC, Middle East, Africa, UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.
Why Choose Macstroc MacFusion 315?
The MacFusion 315 Hydraulic Butt Fusion Machine is engineered to deliver outstanding performance, precision, and durability for large-scale pipe welding applications. Its advanced hydraulic technology, precise temperature regulation, and robust construction ensure high-quality fusion joints with maximum reliability. Whether you are working on utility infrastructure, industrial piping, water transmission systems, or gas distribution projects, the MacFusion 315 provides the efficiency and performance required by professionals across the GCC, Middle East, Africa, and global markets.
